Cargo Freighter Specifications
| Diagram | Aircraft | Paylond | Volume | Cargo Compartment Dimension (LxWxH, cm) | Main Door Dimension (LxH, cm) | Nose Door Dimension (LxH, cm) | Tail Door Dimension (LxH, cm) | Bulk Dimension (LxH, cm) | Notes |
|---|---|---|---|---|---|---|---|---|---|
 | A300B4-200F | 44 | 280 | 358x259 | 95x95 |  |
|||
 | A300-600F | 54 | 310 | 358x259 | 95x95 |  |
|||

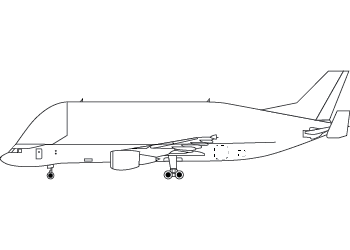

 | A300-600ST | 47 | 1400 | 3770X710X710 | 358x259 | 95x95 |  |
||
 | A310-200F | 36 | 250 | 358x256 | 95x108 |  |
|||
 | A310-300F | 40 | 250 | 358x256 | 95x108 |  |
|||
 | A330-200F | 70 | 460 | 369x258 | 95x107 |  |
|||
 | A380-800F | 150 | 1134 |  |
|||||
 | AN12 | 18-20 | 90 | 1355x280x240 | 298x295 |  |
|||
 | An22 | 80 | 700 | 2640X382X440 | 300x390 |  |
|||
 | AN124 | 120 | 700 | 3650x640x440 | 640x440 | 640x440 | 95x107 |  |
|
 | AN225 | 250 | 750 | 4335x640x440 | 640x440 |  |
|||
 | B707-320C | 42 | 162 | 1355x280x240 | 310x110 | 2 @ 122x127 76x89 |  |
||
 | B727-100F | 21 | 135 | 340x218 | 137x107 137x112 122x81 |  |
|||
 | B727-200F | 26 | 182 | 340x218 | 2@ 122x89 |  |
|||
 | B737-200F | 17 | 77 | 340x219 | 122x130 122x122 |  |
|||
 | B737-300F | 18 | 130 | 350x230 | 122x130 122x122 |  |
|||
 | B737-400F | 21 | 142 | 360x218 | 122x130 122x122 |  |
|||
 | B737-700CF | 19 | 105 | 340x219 | 122x89 120x84 |  |
|||
 | B737-100F/SF | 95 | 565 | 341x310 | 112x120 |  |
|||
 | B737-200F | 105 | 600 | 341x310 | 325x244 | 112x120 |  |
||
 | B747-200BSF/SF | 108 | 600 | 341x310 | 325x244 | 112x120 |  |
||
 | B737-300SF | 106 | 615 | 341x310 | 325x244 | 112x120 |  |
||
 | B737-400F | 113 | 615 | 341x310 | 325x244 | 112x120 |  |
||
 | B747-400BCF | 110 | 615 | 341x310 | 325x244 | 112x120 |  |
||
 | B747-400ERF | 113 | 615 | 341x310 | 325x244 | 112x120 |  |
||
 | B737-8F | 133 | 858 | 341x310 | 325x244 | 112x94 |  |
||

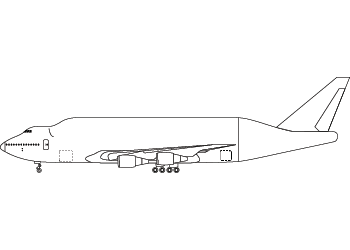

 | B747LCF | 80 | 1840 | ||||||
 | B757-200F | 32 | 187 | 340x218 | 140x108 140x114 |  |
|||
 | B757-200SF/PCF | 29 | 187 | 340x218 | 140x108 140x114 |  |
|||
 | B757-200ERF | 36 | 187 | 340x218 | 140x108 140x114 |  |
|||
 | B767-200F | 42 | 370 | 340x254 | 97x119 |  |
|||
 | B767-300F | 51 | 430 | 340x254 | 97x119 |  |
|||
 | B777-200F | 103 | 580 | 372x304 | 90x121 |  |
|||
 | BAe 146-200QTF | 11.5 | 78 | 333x193 | 135x76 91x68 |  |
|||
 | BAe 146-300QTF | 12 | 88 | 333x193 | 135x110 91x105 |  |
|||
 | DC-6F | 12.7 | 95.7 | 231x170 315x177 | 2@ 114x94 |  |
|||
 | DC-8-54CF | 47 | 200 | 355x215 | 4@ 111x91 |  |
|||
 | DC-8-55CF | 43 | 200 | 355x215 | 4@ 111x91 | |
|||
 | DC-8-61CF | 39 | 295 | 355x215 | 2@ 161x138 2@ 111x91 |  |
|||
 | DC-8-63CF | 47 | 295 | 355x215 | 2@ 161x138 2@ 111x91 |  |
|||
 | DC-8-71CF | 42 | 295 | 355x215 | 2@ 161x138 [email protected] |  |
|||
 | DC-8-73CF | 49 | 295 | 355x215 | 2@ 161x138 [email protected] |  |
|||
 | DC-9-15F | 10 | 86 | 345x205 | 134x79 91x76 |  |
|||
 | DC-9-30F | 17 | 114 | 345x205 | 134x79 91x76 |  |
|||
 | DC10-10F | 54 | 380 | 356x259 | 76x122 |  |
|||
 | DC10-30F | 65 | 380 | 356x259 | 76x122 |  |
|||
 | DC10-30CF | 62 | 380 | 356x259 | 76x122 |  |
|||
 | DC10-40F | 75 | 380 | 356x259 | 76x122 |  |
|||
 | Fokker F27-500 | 6.3 | 62 | 1560x206x190 | 232x175 75x165 |  |
|||
 | Fokker F27-600 | 6.3 | 62 | 1336x206x190 | 288x175 75x165 |  |
|||
 | Fokker 50 | 7.3 | 60 | 1596x203x176 | 234x177 |  |
|||
 | IL-18D/Gr/GrM/V | 13.7 | 112 | 2400x323x200 | 350x185 or 76x140 | 2@ 125x75 |  |
||
 | IL-62MF | 40 | 230 | 345x200 | 107x115 | 131x126 100x126 70x76 |  |
||
 | IL-76T | 42 | 288 | 2454x345x340 | 345x340 |  |
|||
 | IL-76TD/MD | 48 | 288 | 2454x345x340 | 345x340 | |
|||
 | IL-76TD-90VD | 50 | 288 | 2454x345x340 | 345x340 |  |
|||
 | IL-96-400T | 92 | 580 | 485x287 | 80x136 |  |
|||
 | IL-100-30 | 17 | 100 | 304x274 |  |
||||
 | IL-188AF/CF | 14 | 106 | 1707x304x274 | 355x198 243x203 | 2@ 132x107 |  |
||
 | IL-1011-200F | 56 | 350 | 383x291 | 111x122 |  |
|||
 | MD10-10F | 65 | 380 | 356x259 | 76x122 |  |
|||
 | MD10-30F | 65 | 380 | 356x259 | 76x122 | |
|||
 | MD-11F/CF | 90 | 500 | 356x259 | 178x168 |  |
|||
 | TU-154S | 18 | 72 | 280x187 | 2@ 135x80 | ||||
 | TU-204C | 27 | 179 | 340x218 | 2@ 134x120 |  |
|||
 | Y-8 | 20 | 90 | 1135x350x260 | 298x295 |  |
|||
 | Yak-42D | 12 | 200 | 770x215x185 | 2@ 148x135 |  |
